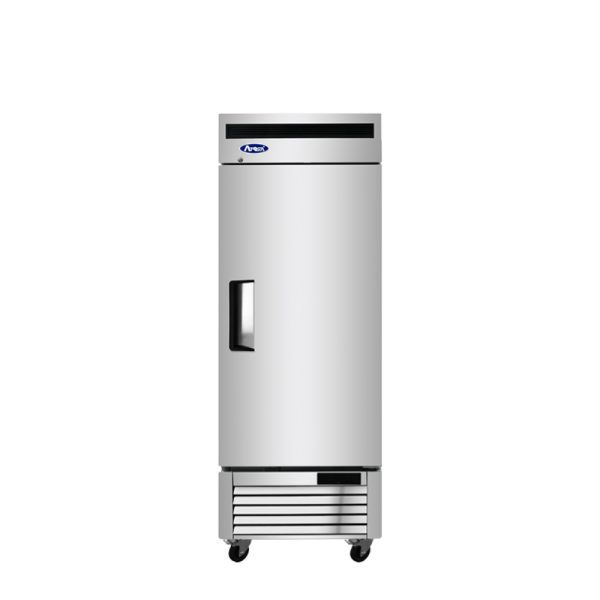

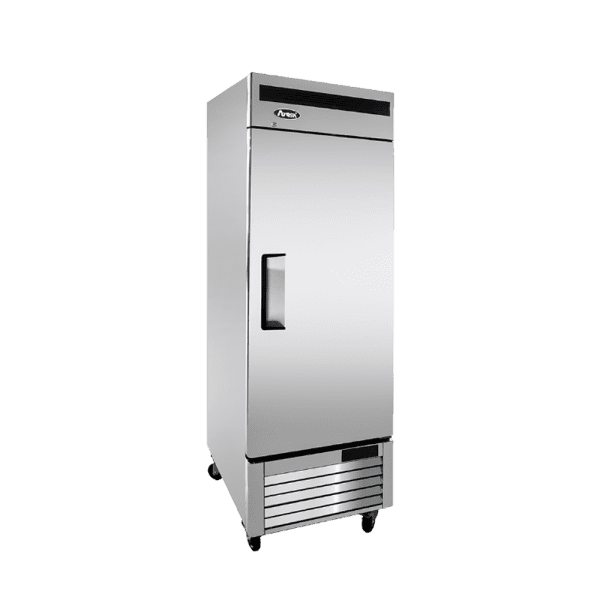

Atosa MBF8501GR Bottom Mount Right Hinge One (1) Door Reach-in Freezer
- Bottom mount compressor units with environmentally friendly R290 refrigerant.
- Stainless steel exterior & interior.
- Digital Electronic Controller.
- Maintains temperatures between -8 F 0 F.
- LED interior light(s).
- Recessed door handle(s).
- Door lock(s) standard.
- Magnetic door gasket(s) standard for positive door seal.
- Pre-installed casters.
- Three (3) pre-installed shelves per section.
- Down duct refrigeration to to ensure even distribution of air.
*** Spec Sheet ***
Stainless Steel
This corrosion resistant stainless steel is the defacto finish for those looking to update their kitchen style with new appliances. With its elegant and modern appearance, stainless steel is a perfect neutral tone that can fit into almost any kitchen design. Our Premium stainless steel is easy to clean and maintain.
Digital Temperature Controller
Heavy Duty Compressor
Equipped with variable capacity heavy duty compressors which can save up to 40% more energy and emit significantly lower noise when compared to a conventional compressor.

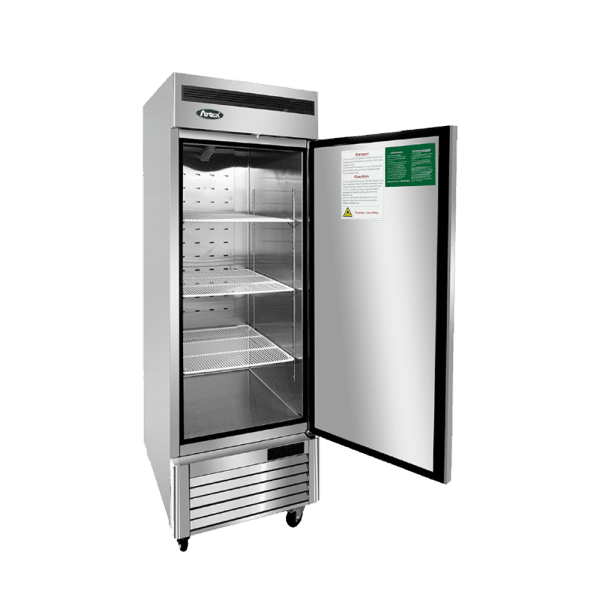

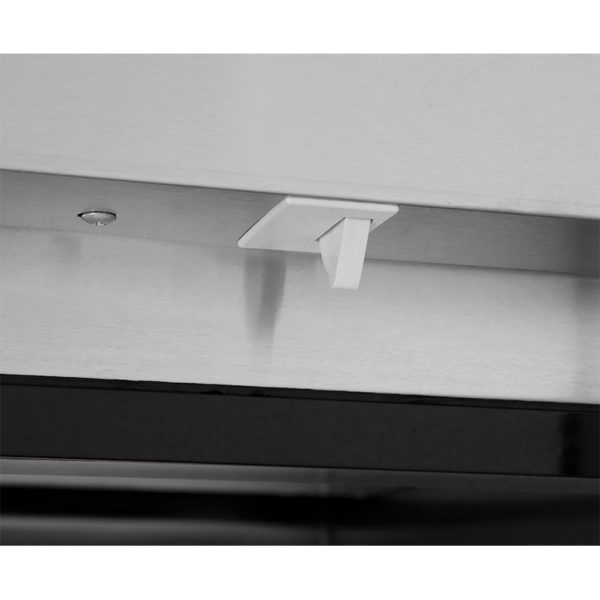

Self Closing Stay Open Feature
Door automatically closes when open to 90 or less. Door stays open past 90.
Efficient Refrigeration System
This environmentally friendly refrigeration system is a self contained, balanced refrigeration system for the efficient operation even under the most extreme working conditions. Air cooled, maintaining product temperatures of - 8 0 F.
Round Corner Design
It has a beautiful and sleek round corner design.
Recessed Door Handles
The simple recessed pull door handle allows doors to slide in front of objects without getting hung up on anything. This design is also easy to clean.

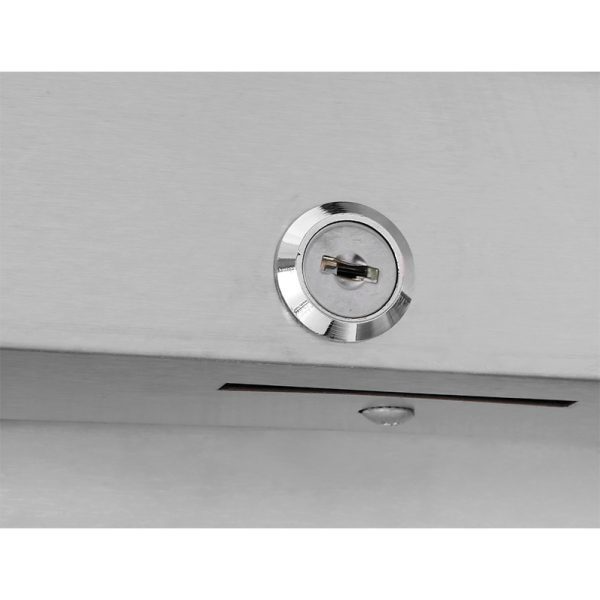

Safety Door Locks
These stainless steel standard door locks protect refrigerator contents and control access to drinks and food.
Magnetic Door Gaskets
Atosa's seals keep heat, cold, moisture and dust in or out! Flexible gaskets with magnetic strip inserts provide energy-efficient seals without the use of door latches. These gaskets are NSF approved.
Pre-installed Casters with Bumper & Brake
Industrial casters are designed to hold up over 150 lbs each. Dia. posts and 3/8 inch inserts. Featuring a swivel design for easy mobility. A set of 4 includes brakes on 2 of the wheels for control and safety.

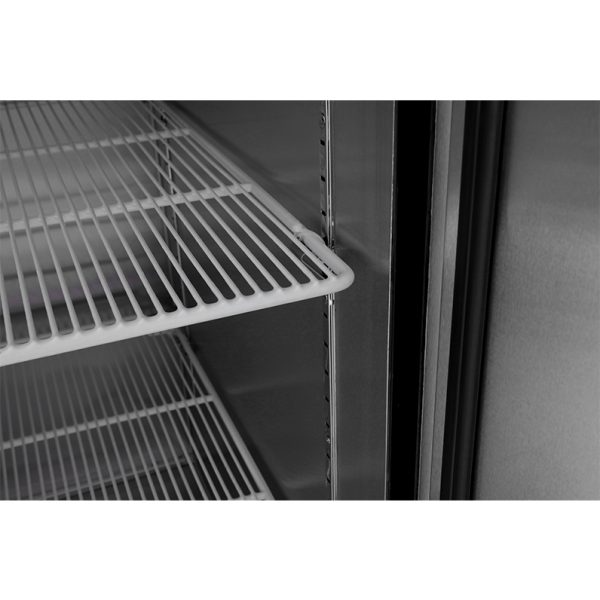

Pre-installed Epoxy Coated Shelves
Atosa's Epoxy Coated Shelves do very well in moist environments. These units are intended for use in humid and moist environments that are found in your walk-in refrigerators and freezers. Their epoxy coating also provides protection from rust and corrosion.
Specifications | |
---|---|
Amps | 6.3 |
Brand | Atosa |
Certifications | ETL ListedETL Safety & Sanitation |
Depth | 31.7 in |
Doors | 1 |
Height | 83.1 in |
Hertz | 60 |
Horsepower | 1/2 |
Manufacturer part number | MBF8501GR |
Material | Stainless Steel |
Max temperature | 0 °F |
Min temperature | -8 °F |
Phase | 1 |
Plug type | NEMA 5-15P |
Product type | Reach-ins |
Refrigerant | R290 |
Sold as | Each |
Voltage | 115 |
Width | 27 in |
Most orders are shipped out within 1-2 business days* from Cleveland, OH. Occasionally we will also ship directly from the manufacturer. All shipping times on ShopAtDean.com are estimates.
Expedited Orders (Next Day, UPS 2nd Day, etc.) placed after 3PM EST will be shipped the following business day*.
* Business days are Monday through Friday. We are closed on New Years Day, Memorial Day, Independence Day, Labor Day, Thanksgiving, and Christmas Day.
Specifications | |
---|---|
Amps | 6.3 |
Brand | Atosa |
Certifications | ETL ListedETL Safety & Sanitation |
Depth | 31.7 in |
Doors | 1 |
Height | 83.1 in |
Hertz | 60 |
Horsepower | 1/2 |
Manufacturer part number | MBF8501GR |
Material | Stainless Steel |
Max temperature | 0 °F |
Min temperature | -8 °F |
Phase | 1 |
Plug type | NEMA 5-15P |
Product type | Reach-ins |
Refrigerant | R290 |
Sold as | Each |
Voltage | 115 |
Width | 27 in |
What is the storage capacity of this freezer?
The Atosa MBF8501GR offers 23 cubic feet of freezer storage space.
How many doors does it have?
It features 1 solid right-hinged self-closing door with a stay-open function when opened past 90°.
Is it a bottom-mount unit?
Yes, the compressor is mounted on the bottom, making it easier to service and improving efficiency in warm kitchens.
What is the exterior and interior made of?
Both the interior and exterior are stainless steel, providing durability, easy cleaning, and a professional appearance.
How many shelves are included?
Comes with 3 adjustable heavy-duty epoxy-coated shelves for flexible storage.
What is the temperature range?
This freezer maintains temperatures between -8°F and 0°F for safe frozen storage.
How is temperature controlled?
Uses a Dixell digital controller with an easy-to-read display for precise temperature management.
What type of refrigerant does it use?
Uses R290 hydrocarbon refrigerant, which is energy-efficient and environmentally friendly.
Does it have casters?
Yes, it includes pre-installed casters (two locking) for mobility and easy cleaning access.
What are the unit dimensions?
Measures approx. 27.6" W x 31.5" D x 83.1" H, fitting well in standard commercial kitchens.
Is it certified for commercial use?
Yes, it's ETL Listed and NSF Certified, meeting foodservice equipment standards.
What kind of power connection does it require?
Runs on 115V, standard plug, with a NEMA 5-15P connection.
What is the warranty coverage?
Includes a 2-year parts & labor warranty and a 5-year compressor warranty from Atosa.
